d&b Audio Q7

Dual 10in Loudspeaker

Hire Details

Available to hire as part of a custom designed system from an partner PA hire company delivering larger PA systems. Learn more →

Other d&b Loudspeakers

Dual 10in Loudspeaker - d&b Audio Q7
Dual 10in Line-Array Loudspeaker - d&b Audio Q1
18in Subwoofer - d&b Audio Q-Sub

Equipment List

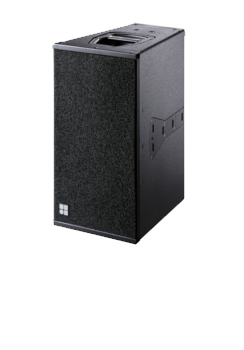

The Q7 is a 75° x 40° passive two-way loudspeaker housing two 10" LF drivers and a 1.3" HF compression driver with a rotatable constant directivity horn and a passive crossover network. The two 10" neodymium LF drivers are positioned in a dipolar arrangement providing exceptional vertical dispersion control with the nominal angle being maintained down to 400 Hz. The Q7 with the horn rotated is used to mount the loudspeaker horizontally where space is limited, or the maximum horizontal pattern control is needed and when added to the bottom of Q1 arrays. The Q7 can be used as a stand-alone full range system, in combinations with other Q-Series cabinets ground stacked, or mounted on a high stand with a swivel bracket. They can also be combined in flown array systems. The Q7 cabinet is constructed from marine plywood and has an impact resistant paint finish. The front of the loudspeaker cabinet is protected by a rigid metal grill, covered with a replaceable acoustically transparent foam. The cabinet incorporates a pair of handles and mounted on the rear panel are two EP5 or NL4 connectors wired in parallel.

Components: 2 x 10" driver / 1.3" compression driver
Max. sound pressure (1 m, free field) with D6 / D12: 134 / 138 dB SPL
Power handling capacity (RMS / peak 10 ms): 400 / 1600 W
Frequency response (-5 dB): 60 / 100 Hz - 17 kHz
Nominal dispersion angle (h x v): 75 x 40 CD

http://www.dbaudio.com/en/systems/details/q7-loudspeaker.html

Disclaimer: - This text (the product description) may have been copied from the manufacturer's website.
