d&b Audio Q1

Dual 10in Line-Array Loudspeaker

Hire Details

Available to hire as part of a custom designed system from an partner PA hire company delivering larger PA systems. Learn more →

Other : Retired

16ch Digital Mixing Console - Allen Heath QU-16
10in Active Loudspeaker - RCF ART 410-A
10in Active Monitor - JBL EON10 G2
4ch mic/line Mixer - Allen Heath Zed-6
12in Active Loudspeaker - JBL PRX 512M
18in Active Subwoofer - RCF 4PRO 8003-AS
Dual 10in Loudspeaker - d&b Audio Q7
15in Active Subwoofer - RCF ART 705-AS
Dual 10in Line-Array Loudspeaker - d&b Audio Q1
Professional Digital turntable CD Deck - Pioneer CDJ-1000
Advanced Digital Console - Midas PRO1-40

Equipment List

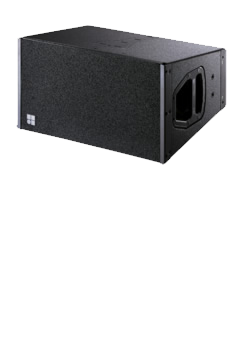

The Q1 is a passive two-way loudspeaker housing two 10" LF drivers positioned in a dipolar arrangement and a 1.3" HF compression driver fitted to a toroidal wave shaping device. The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wave front. The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15° to 30° dispersion, up to twenty cabinets with a fully user and venue defined vertical profile. The Q1 cabinet is constructed from marine plywood, incorporates a pair of handles and has an impact resistant paint finish. The front of the loudspeaker is protected by a rigid metal grill covered with replaceable acoustically transparent foam, and two EP5 or NL4 connectors wired in parallel are mounted on the rear panel.

Component: 2 x 10" driver / 1.3" compression driver
Max. sound pressure (1 m, free field) with D6 / D12: 135 / 139 dB SPL
Power handling capacity (RMS / peak 10 ms): 400 / 1600 W
Frequency response (-5 dB): 60 / 100 Hz - 17 kHz
Nominal dispersion angle (h x v): 75 x 15

http://www.dbaudio.com/en/systems/details/q1-loudspeaker.html

Disclaimer: - This text (the product description) may have been copied from the manufacturer's website.
